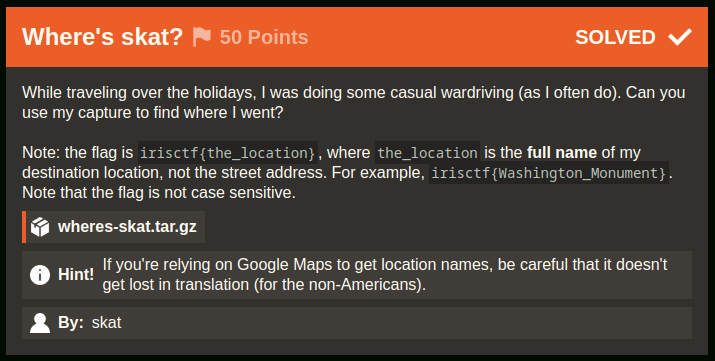

Where's skat? [134 Solves]

Description

While traveling over the holidays, I was doing some casual wardriving (as I often do). Can you use my capture to find where I went?

Note: the flag is irisctf{the_location}, where the_location is the full name of my destination location, not the street address. For example, irisctf{Washington_Monument}. Note that the flag is not case sensitive.

wheres-skat.tar.gz

Hint! If you're relying on Google Maps to get location names, be careful that it doesn't get lost in translation (for the non-Americans).

By: skat

Short Solution

Extract SSID the packet capture
Search SSID latitude and longitude by WiGLE
Mapping by MI Map Tools: GeoPlotter.

Solution

Attachment / Source Code

$ tar zxvf wheres-skat.tar.gz
wheres-skat/
wheres-skat/wheres-skat.zip

$ unzip wheres-skat/wheres-skat.zip
Archive:  wheres-skat/wheres-skat.zip
  inflating: wheres-skat.pcap

$ file wheres-skat.pcap
wheres-skat.pcap: pcap capture file, microsecond ts (little-endian) - version 2.4 (802.11, capture length 65535)

Initial Analysis

Wardriving

Wardriving is the act of searching for Wi-Fi wireless networks, usually from a moving vehicle, using a laptop or smartphone. Software for wardriving is freely available on the internet.

Looking at the provided wheres-skat.pcap file with Wireshark, a SSID is recorded. We can get the latitude and longitude of SSID by WiGLE.

SSID latitude and longitude

Extract SSID from the pcap file:

$ tshark -r wheres-skat.pcap | grep -Eo 'SSID=.*' | sort -u | sed -e 's/SSID=//g' | tr -d '"' > ssids.txt
$ wc -l ssids.txt
145 ssids.txt

Since there are multiple SSIDs, examining all the latitude and longitude could lead to noisy locations. Therefore, I will try to investigate only distinctive SSIDs. This time, I used distinctive SSIDs starting with Starry and Vive-.

$ TZ=UTC tshark -r wheres-skat.pcap -t u -T fields -e frame.time | head -1
Dec 24, 2023 17:48:17.672803000 UTC

$ TZ=UTC tshark -r wheres-skat.pcap -t u -T fields -e frame.time | tail -1
Dec 24, 2023 17:55:46.619686000 UTC

The packets is captured on 2023/12/24. Since the SSIDs recorded on this day may not have been uploaded to WiGLE, I will investigate the period from 2023/1/1 to 2023/12/26, instead of filtering only for 2023/12/24.

ssid2latlong.py

import datetime
import os
import traceback
import requests
import requests_cache
from requests.auth import HTTPBasicAuth

requests.packages.urllib3.disable_warnings()
# s = requests.Session()

# Due to API limit on the WiGLE API, use requests-cache
# https://pypi.org/project/requests-cache/
s = requests_cache.CachedSession()

# s.proxies = {"http": "http://127.0.0.1:8080", "https": "http://127.0.0.1:8080"}
s.verify = False

# API_NAME and API_TOKEN is in https://wigle.net/account
basic = HTTPBasicAuth(os.environ["API_NAME"], os.environ["API_TOKEN"])
s.auth = basic


SSIDS = """\
Starry00142
Starry00142_extra2
Starry02044
Starry03580
Starry03656_extra2
Starry04276
Starry05290
Starry07822
Vive-017d5690 West
Vive-017d569c SOC
Vive-017d56a7 Mens Restroom
Vive-017d56a8 Ticketing
Vive-017d56a9 Waiting East
Vive-017d56ab baggage claim
"""
SSIDS = SSIDS.strip().split("\n")


def main():
    for ssid in SSIDS:
        r = s.get("https://api.wigle.net/api/v2/network/search", params={"ssid": ssid})

        try:
            r = r.json()
            if not r["success"]:
                continue

            for result in r["results"]:
                lastupdt = datetime.datetime.fromisoformat(result["lastupdt"])
                if lastupdt < datetime.datetime.fromisoformat(
                    "2023-01-01T00:00:000Z"
                ) or lastupdt > datetime.datetime.fromisoformat(
                    "2023-12-26T00:00:000Z"
                ):
                    continue

                lat = result["trilat"]
                long = result["trilong"]

                with open("ssids.csv", "a") as f:
                    output = f"{lat},{long},#00FF00,marker,{ssid}\n"
                    f.write(output)
                    # print(output)
        except Exception:
            print(traceback.format_exc())
            continue


if __name__ == "__main__":
    main()

ssids.csv

34.04496002,-118.25265503,#00FF00,marker,Starry00142
34.06202316,-118.22996521,#00FF00,marker,Starry02044
38.87654114,-77.01473236,#00FF00,marker,Starry03580
38.87643433,-77.01473236,#00FF00,marker,Starry03580
34.05324554,-118.44207001,#00FF00,marker,Starry04276
34.05331421,-118.4419632,#00FF00,marker,Starry04276
34.06231689,-118.22847748,#00FF00,marker,Starry04276
34.06303787,-118.22993469,#00FF00,marker,Starry05290
34.06263351,-118.23001099,#00FF00,marker,Starry05290
34.0561409,-118.2361908,#00FF00,marker,Vive-017d5690 West
34.05609894,-118.23609924,#00FF00,marker,Vive-017d569c SOC
34.05602264,-118.23545074,#00FF00,marker,Vive-017d56a7 Mens Restroom
34.05579758,-118.23560333,#00FF00,marker,Vive-017d56a8 Ticketing
34.05609131,-118.23632812,#00FF00,marker,Vive-017d56a9 Waiting East
34.05608749,-118.23564148,#00FF00,marker,Vive-017d56ab baggage claim

Mapping SSID

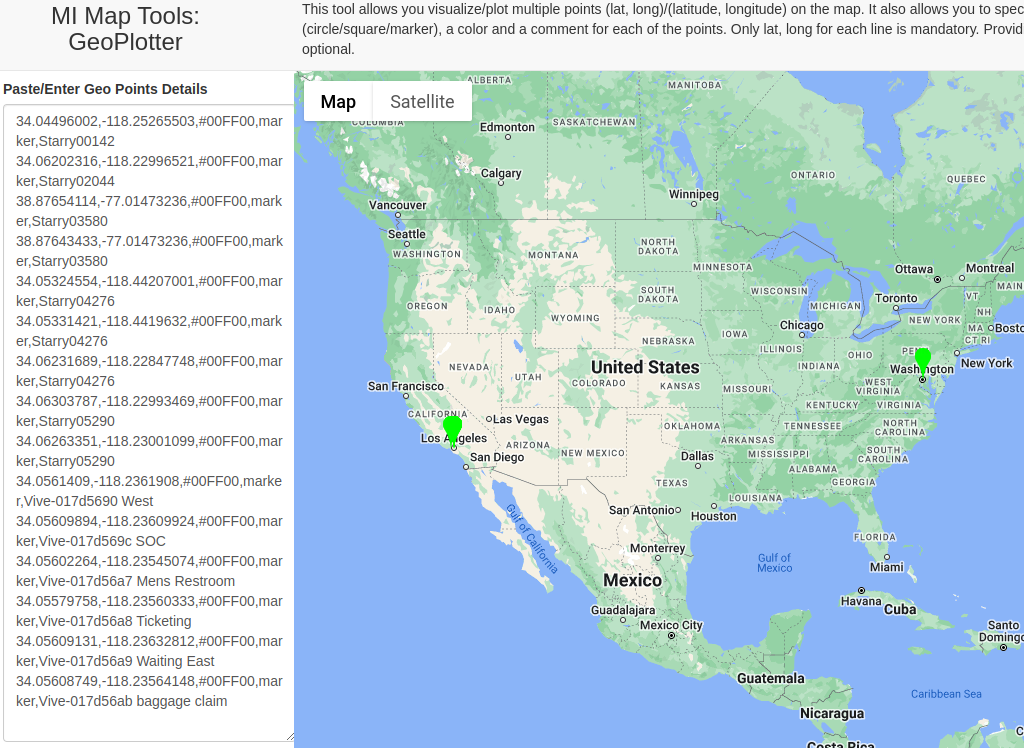

Mapping lat-long by MI Map Tools: GeoPlotter.

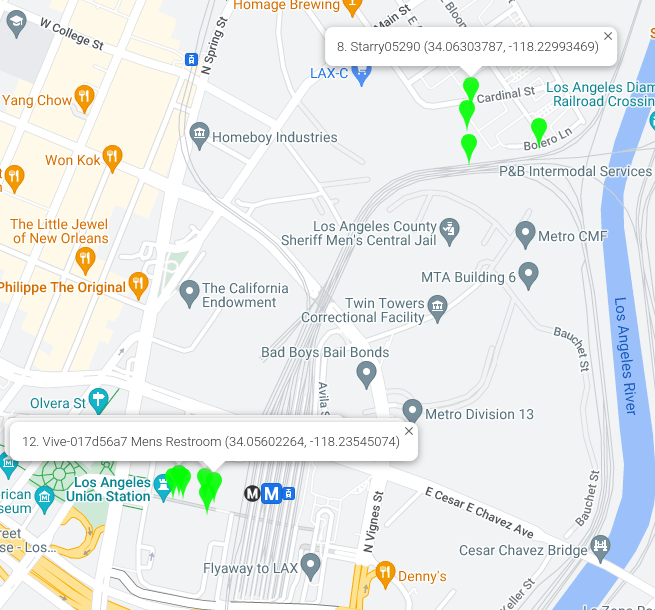

There are many plots in Los Angeles. I will take a closer look.

Many plots is in Los Angeles Union Station.

correct flag: irisctf{Los_Angeles_Union_Station}

Flag

irisctf{Los_Angeles_Union_Station}
